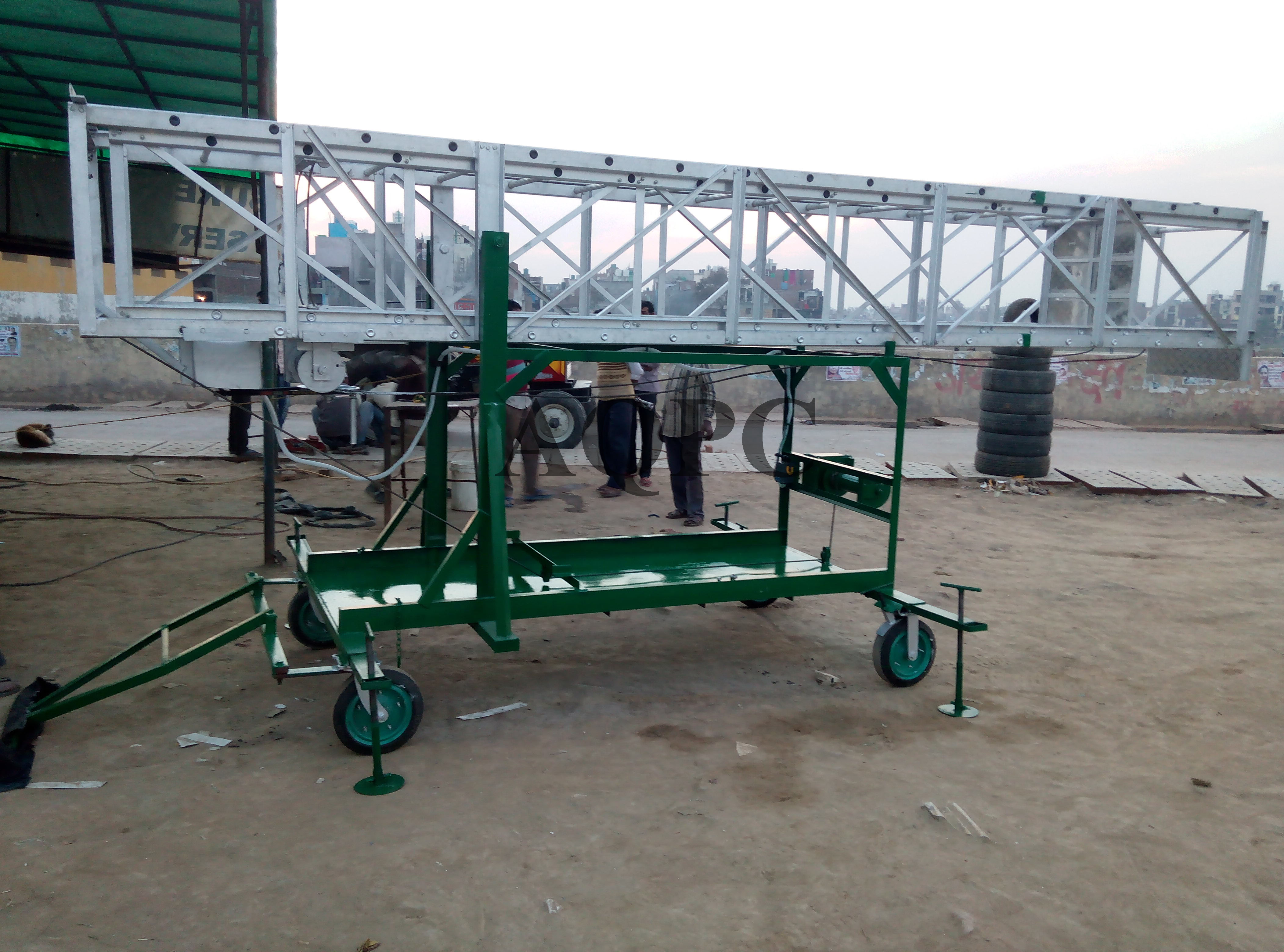

motorized aluminium tower ladder

AQPC MODEL No: 1005 SPECIAL AQPC ALUMINIUM Tiltable Square type

Fully Extendable, motorized tower ladder

Motorize tower ladder available in two folds made out of

aluminum C section of size 66 68mm x 31 75mm x 3 20mm

Thick approx with aluminium Fluited pipe 25.4mm 1 inch dia approx

At the required distance of 300mm apart complete with set of 8mm Usa martain duble

Steel wire rope, M.S. pulleys and winch system for extended and closing the ladder at

Any required height fabricated on M.S. channel frame of size 100mm x 50mm mounted

On four special type castor wheels (two revolving and two fixed) of size 12” x 3”1/2

With ball bearings.

Workmen’s platform is provided 3 ft. Below from the top size 24” x 24” and one tool

Tray of size 24” x 8” on the top. The platform is guarded from three sides for safe

Working. A handle is also provided on the front side of ladder for easy moving.

Further the ladder may be provided motorized with mechanical system to tilt the

Complete ladder on rest and again lift the same for working having additional winch set

Completed with Required M.S pulley and steel wire rope to enable to reduce extra man

power to handle The ladder. And gear boxes 1 No. Of 01ton & 01 ton each brakes are

provided on the 2no. Fixed wheels and 4no. Adjustable Jacks at four ends of the

M.S.Frame and M.S.Channel Base covered with M.S.Sheet and

Trolly Base size :– 08 x 5ft Tiltable ladder Height 8ft.,

Closed 10 Feet X Extended 17 Feet

Closed 12 Feet X Extended 21 Feet

Closed 14 Feet X Extended 25 Feet

Closed 16 Feet X Extended 28 Feet

Closed 18 Feet X Extended 32 Feet

Closed 20 Feet X Extended 35 Feet

Closed 24 Feet X Extended 40 Feet

Closed . 20 Feet X Extended 50 Feet
