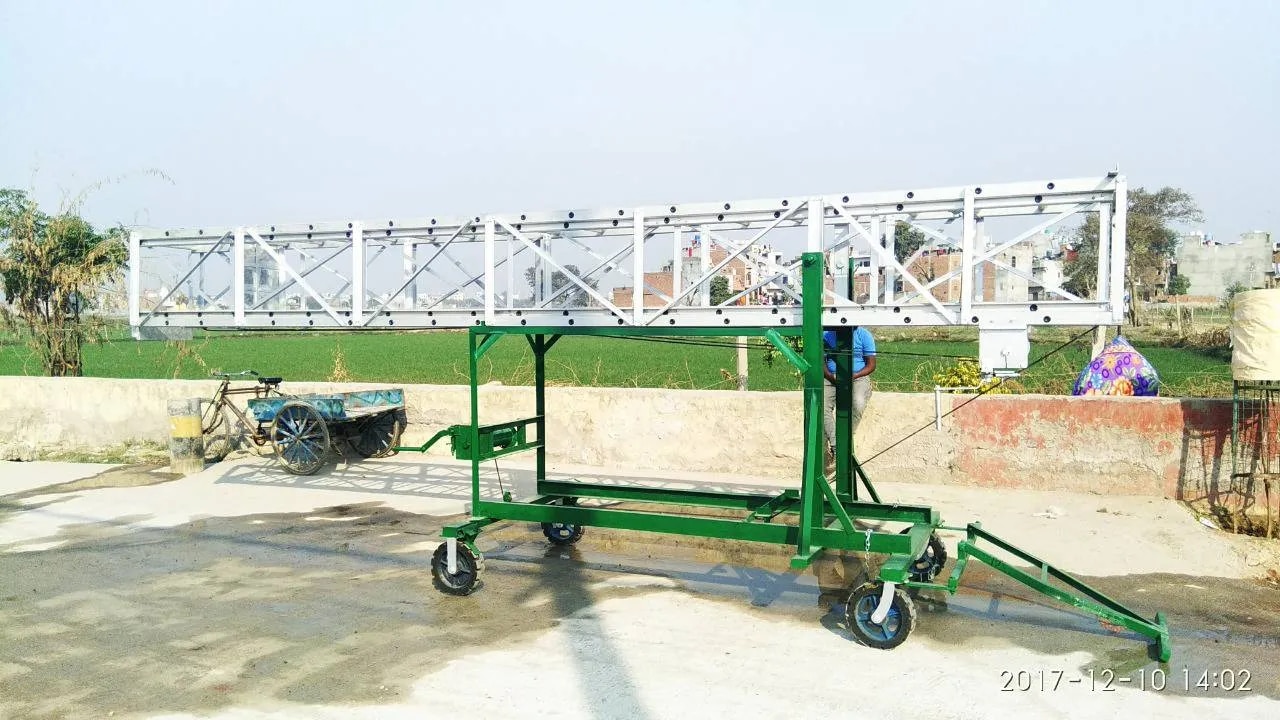

AQPC MOEDE No: 1023 “AQPC” ALUMINIUM Tiltable Tower Extendable Telescopic, Square type Ladder made out of Extruded, Tested Quality Hindalco make ALUMINIUM Section of size 66mm(2.5/8”) x31mm(1.1/4”) x3mm (1/8”) thick approx with steps made of Aluminium fluited pipes of 25mm (1”) dia approx. at a distance of 300mm (12”) complete with a set of Rope pulleys and Winch arrangements with suitable size steel rope for extending and closing the extended section of Ladder to any required height fabricated on M.S.Channel frames and Four M.S.Forged Solid Rubber Casted Special Wheels with Double Ball Bearings of suitable dia complete with Tow Bar. The platform of size 2’x2’ on the top guarded from three sides will be provided for safe working. Further the Ladder may be provided with Mechanical System to tilt the complete Ladder on rest and again lift the same for working having Addl. Winch Set complete with required M.S.Pulleys and steel wire rope to enable to reduce extra manpower to handle the Ladder. 10 feet / 16 feet, 20 feet / 36 feet, 12 feet / 20 feet, 24 feet / 42 feet , 14 feet / 24 feet 20 feet / 50 feet 16 feet / 28 feet 20 feet / 60 feet 18 feet / 32 feet.
