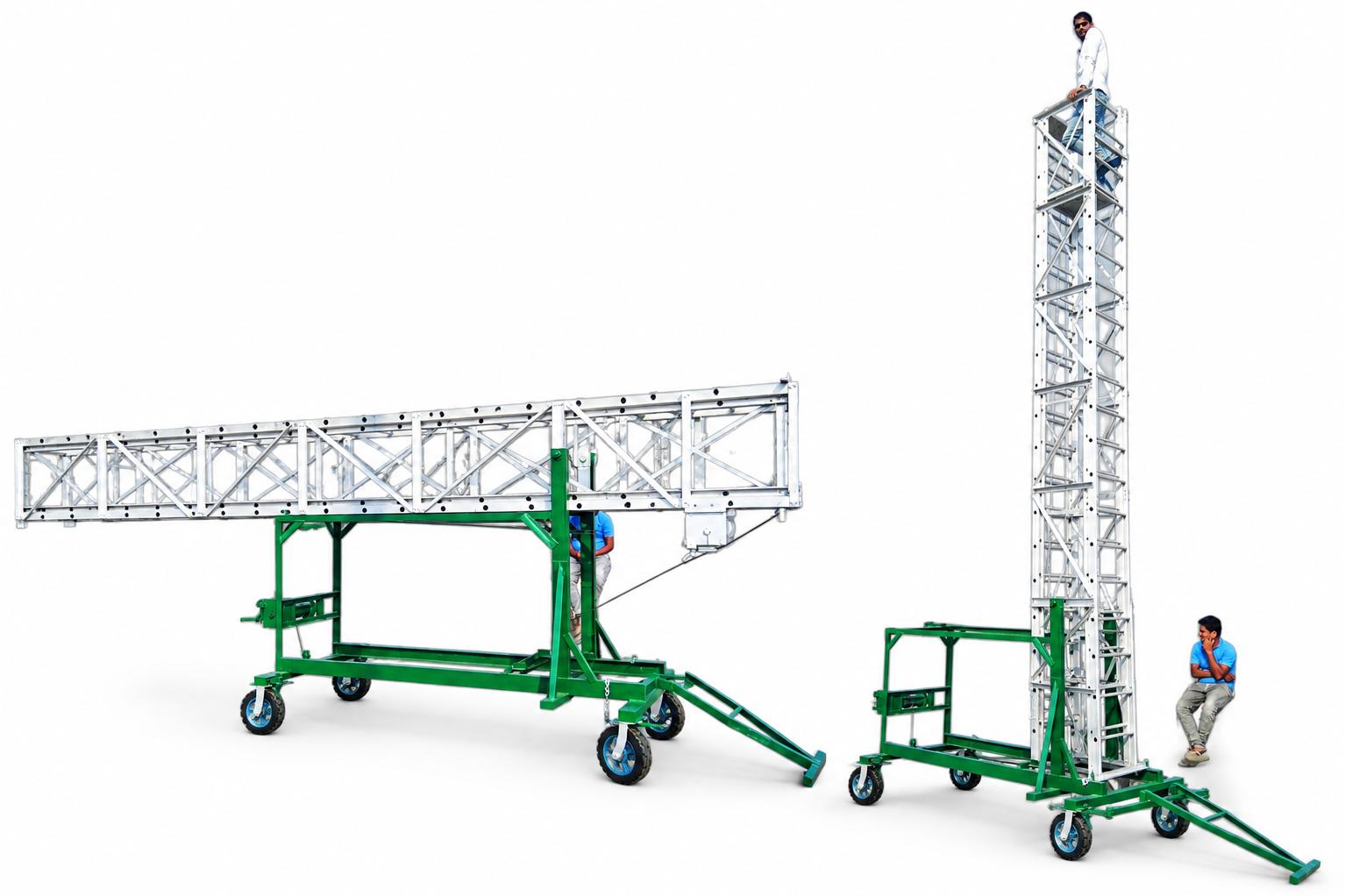

ALUMINUM TILTABLE TOWER LADDER | TELESCOPIC & MOBILE ACCESS SYSTEM
Amit Quality Product Company's Aluminum Tiltable Tower Ladder is a heavy-duty telescopic ladder system designed for industrial maintenance and high-height access applications. Its aluminum ladder structure, tiltable mechanism, rope-pulley & winch extension system and mobile trolley base make it suitable for use at large working heights.
Technical Specifications
Product: Aluminum Tiltable Tower Ladder
Type: Tiltable / Telescopic / Extendable / Square Type
Main Aluminum Section: Approx. 66 × 31 × 3 mm
Step: Aluminum fluted pipe
Step Diameter: Approx. 25 mm (1 inch)
Step Spacing: Approx. 300 mm (12 inches)
Extension System: Steel wire rope, pulley & winch arrangement
Tilting System: Mechanical tilting arrangement with additional winch
Mobile Base: Heavy-duty M.S. channel fabricated frame
Wheels: 4 special heavy-duty wheels with ball bearings
Tow Bar: Provided
Top Working Platform: Approx. 2 ft × 2 ft
Platform Safety: Three-side safety guard
Height: Available in multiple closed/extended combinations
Application: Factory, warehouse, industrial maintenance, electrical maintenance, construction and elevated service work
These key construction details also match your available AQPC specification, which includes a 66 × 31 × 3 mm aluminum section, 25 mm steps at 300 mm spacing, rope-pulley/winch system, four wheels and a 2 × 2 ft guarded platform.
Available Height Range
10/16 ft | 12/20 ft | 14/24 ft | 16/28 ft | 18/32 ft | 20/36 ft | 24/42 ft | 20/50 ft | 20/60 feet
These height options are also given in your product listing.
Key Features
✅ High-strength aluminum ladder construction
✅ Telescopic height adjustment
✅ Mechanical tilting facility
✅ Rope & pulley operated extension
✅ Heavy-duty mobile trolley base
✅ 2 × 2 ft top working platform
✅ Three-side platform protection
✅ Easy movement with heavy-duty wheels
✅ Custom height and trolley configuration available
Best Applications
Industrial Maintenance • Factory Maintenance • Warehouse • Electrical Work • Street Light Maintenance • Construction • High-Level Repair & Service Work
Amit Quality Product Company's Aluminum Tiltable Tower Ladder is a heavy-duty telescopic ladder system designed for industrial maintenance and high-height access applications. Its aluminum ladder structure, tiltable mechanism, rope-pulley & winch extension system and mobile trolley base make it suitable for use at large working heights.
Technical Specifications
Product: Aluminum Tiltable Tower Ladder
Type: Tiltable / Telescopic / Extendable / Square Type
Main Aluminum Section: Approx. 66 × 31 × 3 mm
Step: Aluminum fluted pipe
Step Diameter: Approx. 25 mm (1 inch)
Step Spacing: Approx. 300 mm (12 inches)
Extension System: Steel wire rope, pulley & winch arrangement
Tilting System: Mechanical tilting arrangement with additional winch
Mobile Base: Heavy-duty M.S. channel fabricated frame
Wheels: 4 special heavy-duty wheels with ball bearings
Tow Bar: Provided
Top Working Platform: Approx. 2 ft × 2 ft
Platform Safety: Three-side safety guard
Height: Available in multiple closed/extended combinations
Application: Factory, warehouse, industrial maintenance, electrical maintenance, construction and elevated service work
These key construction details also match your available AQPC specification, which includes a 66 × 31 × 3 mm aluminum section, 25 mm steps at 300 mm spacing, rope-pulley/winch system, four wheels and a 2 × 2 ft guarded platform.
Available Height Range
10/16 ft | 12/20 ft | 14/24 ft | 16/28 ft | 18/32 ft | 20/36 ft | 24/42 ft | 20/50 ft | 20/60 feet
These height options are also given in your product listing.
Key Features
✅ High-strength aluminum ladder construction
✅ Telescopic height adjustment
✅ Mechanical tilting facility
✅ Rope & pulley operated extension
✅ Heavy-duty mobile trolley base
✅ 2 × 2 ft top working platform
✅ Three-side platform protection
✅ Easy movement with heavy-duty wheels
✅ Custom height and trolley configuration available
Best Applications
Industrial Maintenance • Factory Maintenance • Warehouse • Electrical Work • Street Light Maintenance • Construction • High-Level Repair & Service Work
